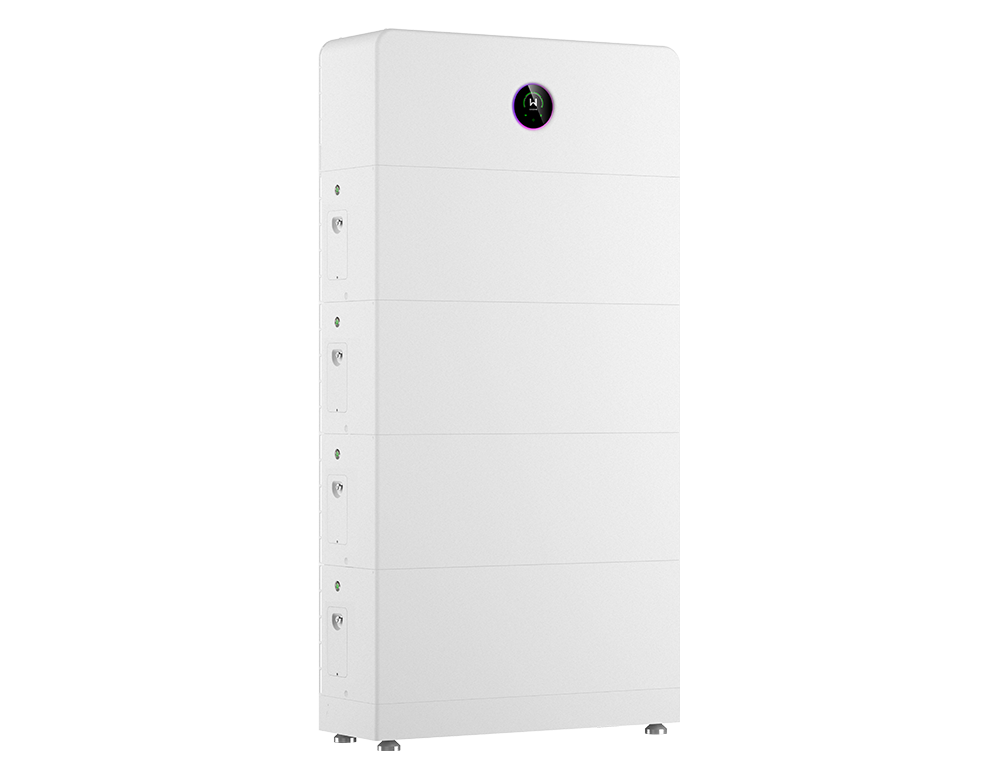

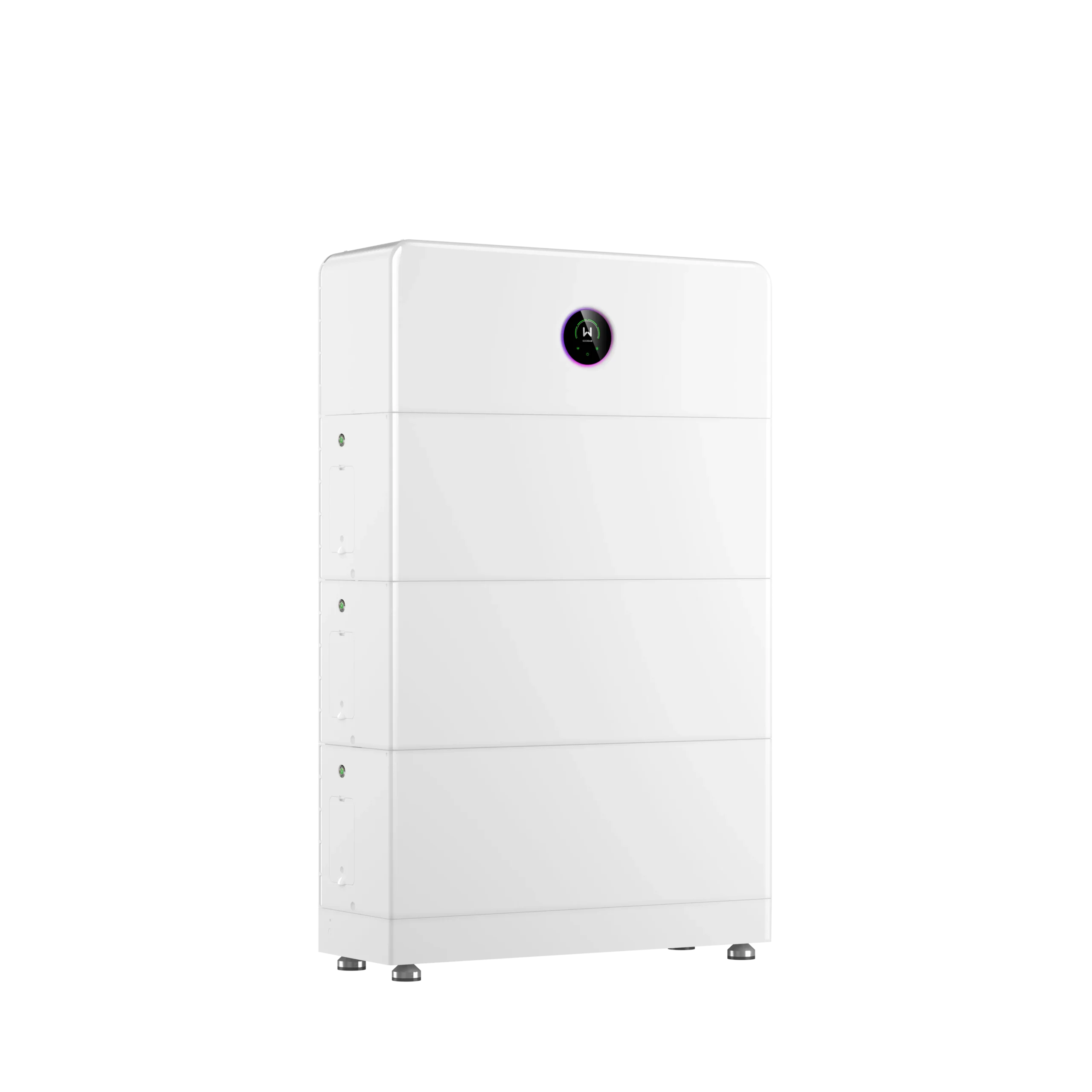

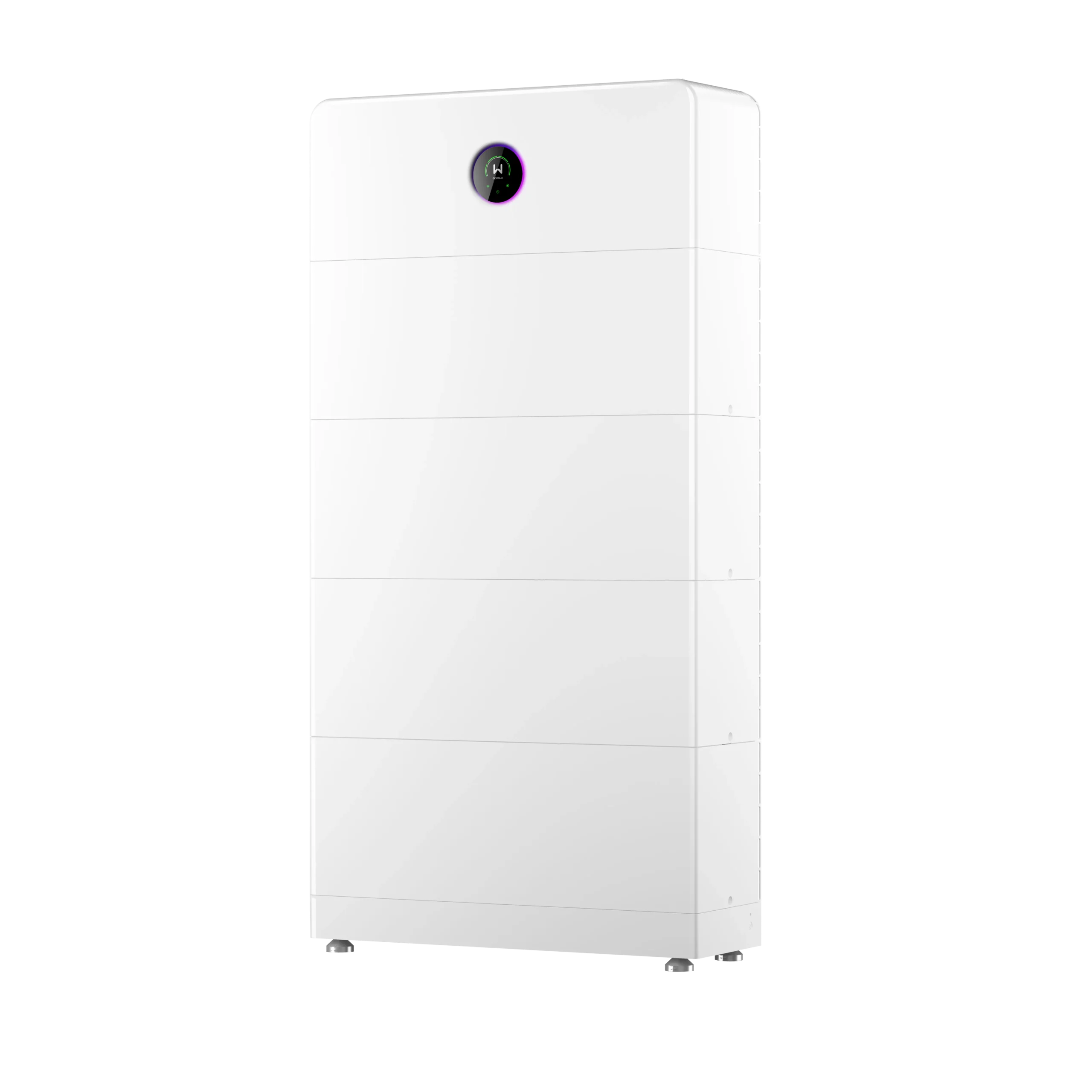

1-Phase Hybrid ESA Series
Introducing Goodwe’s ESA Series All-In-One Hybrid inverter and battery system. The ESA offers a compact, discreet and attractive solution for homeowners with quick and simple installation for installers. This product boasts many innovations with performance, safety and ease in mind coupled with unique features for seamless home energy operation and backup.
High Performance
Residential single-phase All-in-One solution.
200% DC oversizing.
20A input for today’s high-powered modules.
5.1 & 8.3 kWh battery modules with 1C- charge
and discharge rate.
Smart & Flexible
Dedicated AC port for emergency backup.
Simplified integration for dedicated loads backup
or full changeover.
4 ms switching time for seamless backup.
Up to 63A Backup output for whole home.
Mixed battery configuration possible, up to 48kWh.
On-grid & Off-grid (backup) parallel solution up to 6 units. Smart operation modes inluding seasonal Time Of Use for night-rate charging and scheduled discharging. Microgrid & AC-coupling scenarios possible. Accessories kit includes smart meter and
Wi-Fi+Ethernet dongle.
Blind plug design with no with no visible connections/accessories.
10-year warranty.
5 Sizes Available (Power Module)
GW3.6K-EHA-G20, GW5K-EHA-G20, GW6K-EHA-G20, GW8K-EHA-G20, GW10K-EHA-G20.
2 Sizes Available (Battery Module)
GW5.1-BAT-D-G20, GW8.3-BAT- D-G20
